Now that we created a page to display out visual, we can drag and drop nodes into the canvas and assign each one to a specific group.

We start by adding two gauge nodes into our canvas. These will be used to our Temperature and pH monitoring.

Double-click on the first node and change the following parameters

Once all the parameters have been changed, click Done.

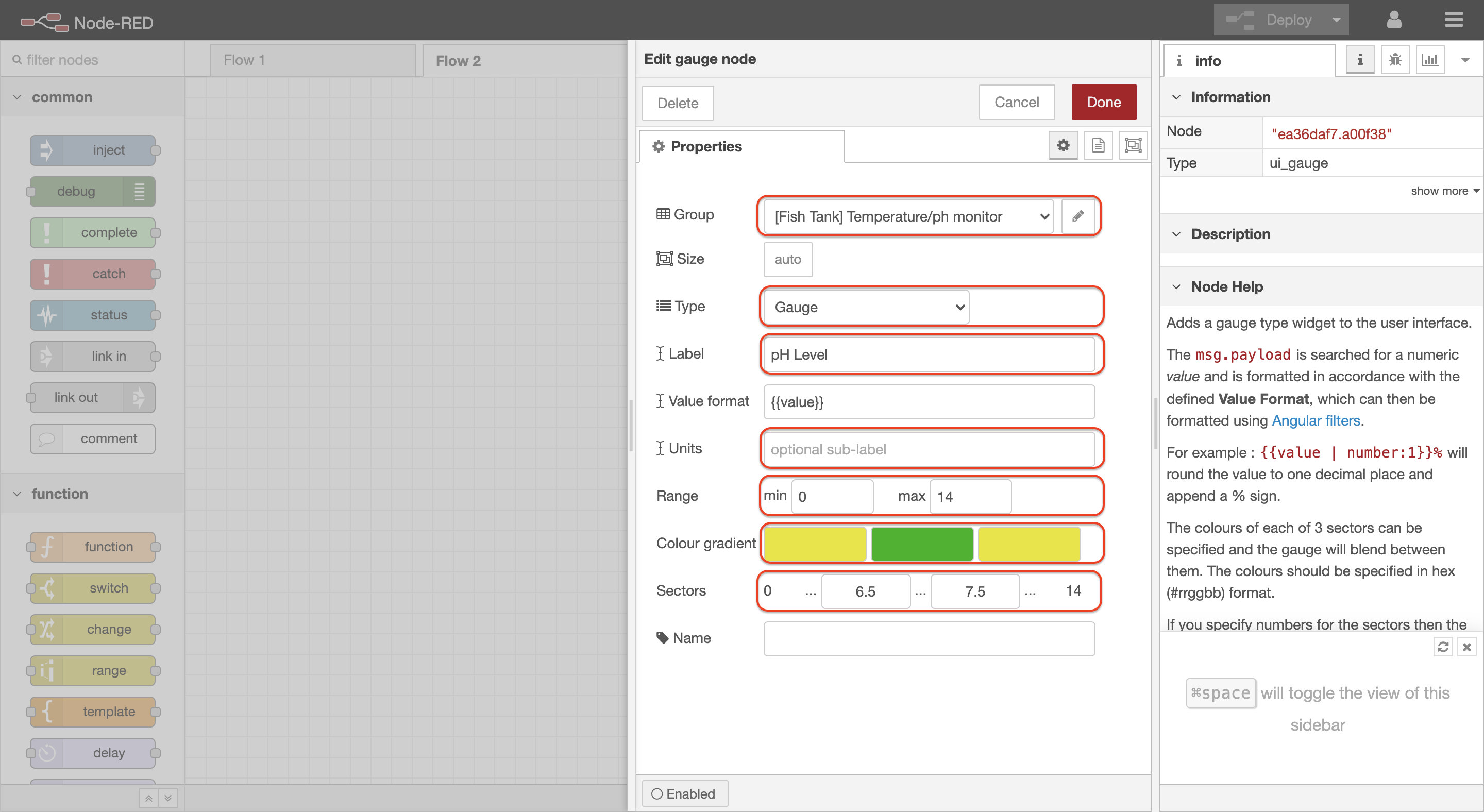

Similar to the first gauge, double-click on the second node and change the following parameters

Once all the parameters have been changed, click Done.

Your canvas should now look like the image below.

Within the Layout tab in the dashboard button, we can change the order of each gauge by dragging and dropping them on top or below one another. This will determine the order in the dashboard page

Now that we have created our first two gauges, we can deploy our code and see our progress.

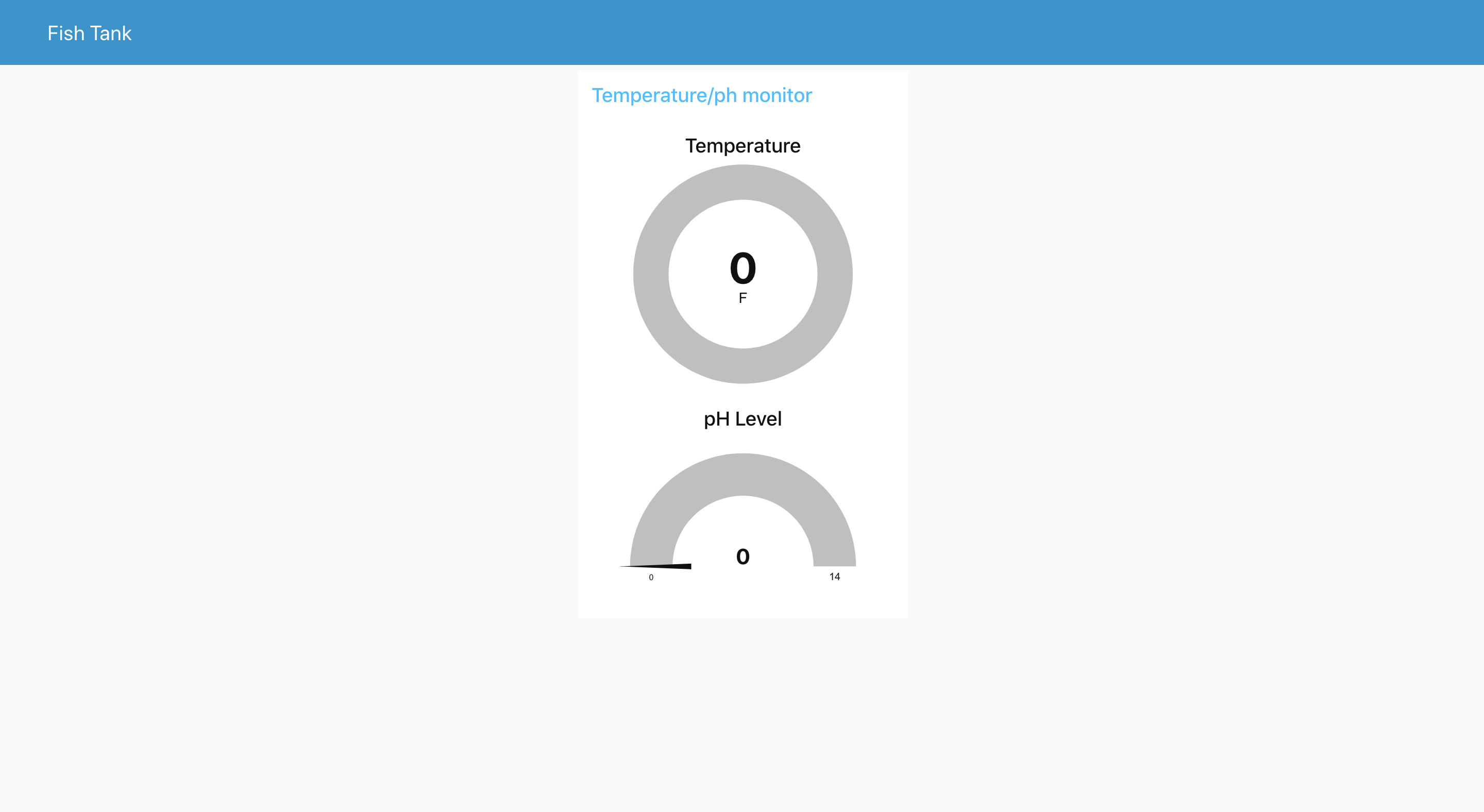

Click Deploy at the top right of the page and go to your dashboard screen by either navigating through the URL or by clicking the icon. Your screen should look similar to the image below
