Publishing Data Stream from Node-Red Manual

PreviousPublishing Alert from Node-Red Manual

Last updated 3 years ago

Was this helpful?

Configure MQTT in Node-RED:

From the nodes in the left navigation bar, drag and drop the output mqtt node.

Double click on mqtt node, click on the pencil/edit button and set these parameters to configure the connection:

  • Connection Tab Parameters:

Parameter

Value

Server

mqtts.connect.iotflows.com

Port

443

Enable secure (SSL/TLS) connection

Checked

Client ID

Your-Device-API-Key-Username

Keep alive time (s)

60

Use clean session

Checked

Use legacy MQTT 3.1 support

Checked

  • Security Tab Parameters:

Parameter

Value

Username

Your-Device-API-Key-Username

Password

Your-Device-API-Key-Password

After the configuration is done, press the ADD

Once it has been added, click DONE.

Publish a Data Stream from Node-RED:

  • Drag and drop an inject node.

  • Drag and drop a function node.

  • Connect the inject to function to mqtt node, respectively.

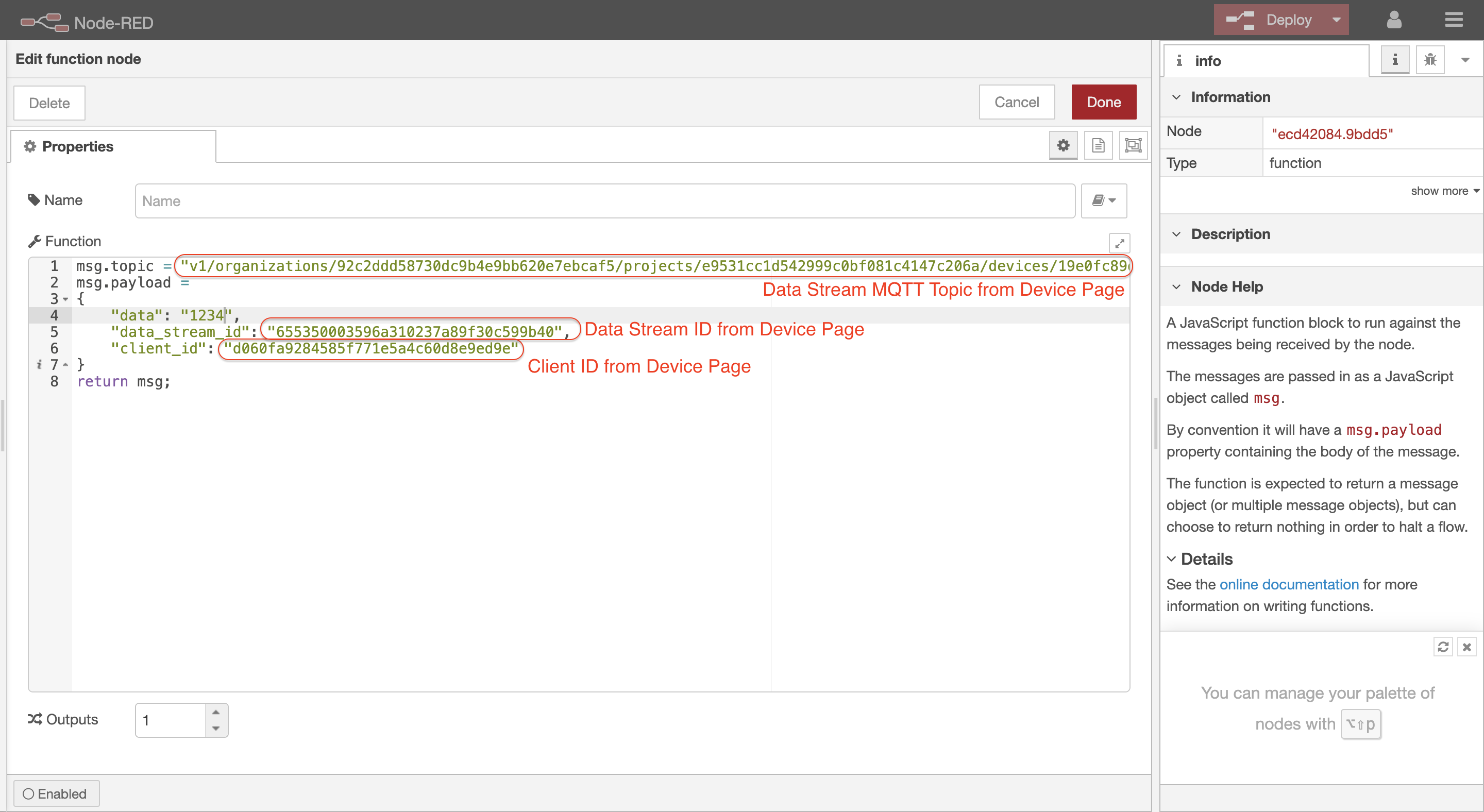

  • Double-tap the function node and write this code:

msg.topic = "YOUR-DATA-STREAM-MQTT-TOPIC";
msg.payload =
{
    "data": "Data from sensor",
    "data_stream_id": "YOUR-DEVICE-DATA-STREAM-ID",
    "client_id": "YOUR-DEVICE-CLIENT-ID"
}
return msg;

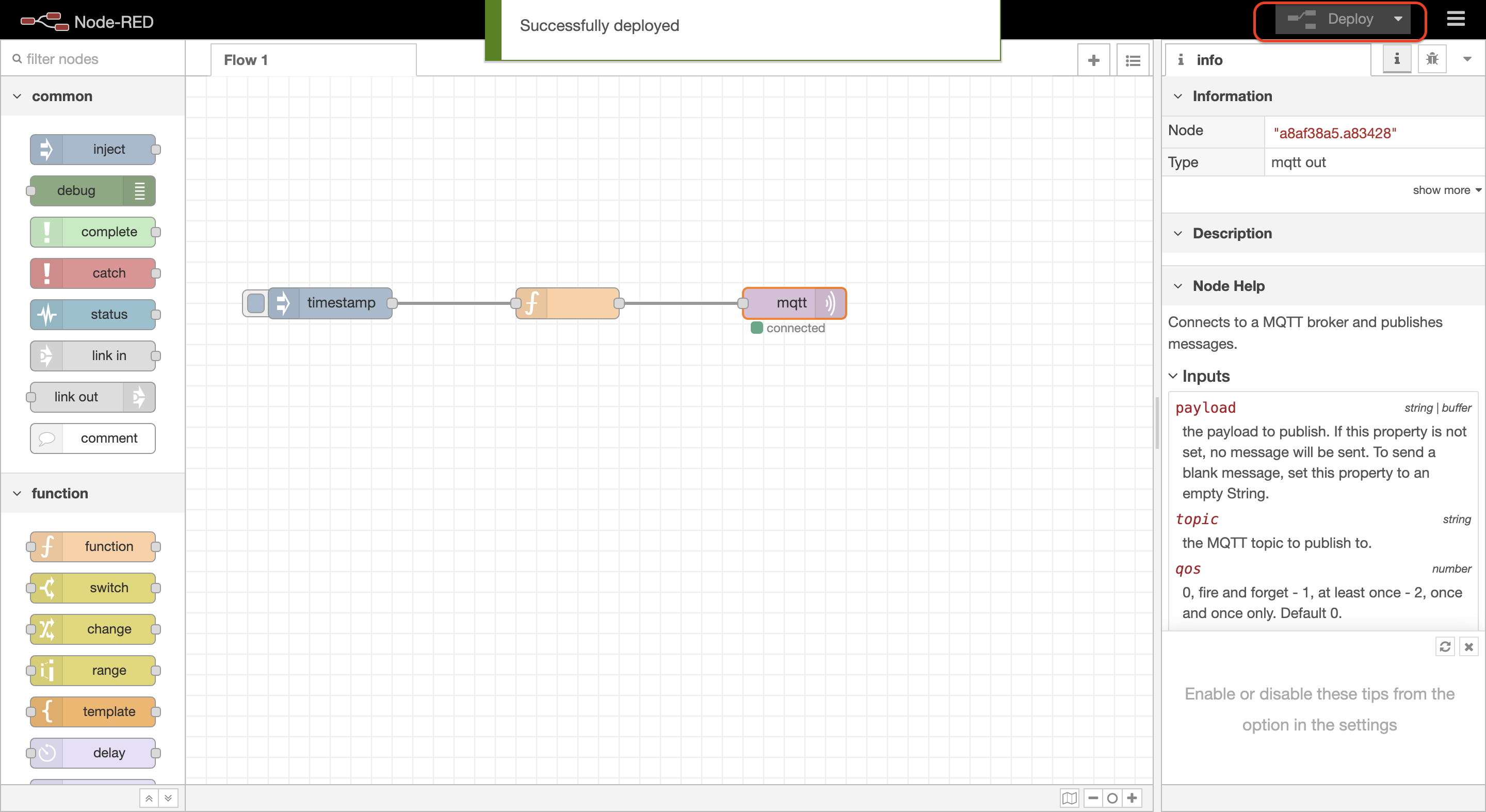

  • From the top right corner of Node-RED, tap Deploy.

  • Tap the button of the inject node and you should receive a data stream.

Node-Red Security Parameter
Node-Red Security Parameters from IoTFlows
